Install CloudFront Integration using CloudFormation

📘

Before you start: Read the general CloudFront guide

This document only covers deploying the Fingerprint Cloudfront proxy integration to your AWS account using a CloudFormation template. It assumes you have already read the general AWS CloudFront Proxy Integration v2 guide and completed the following steps:

• Step 1: You have issued a proxy secret in the Fingerprint Dashboard (FPJS_PRE_SHARED_SECRET).
• Step 2: You have defined the path variables for the integration (FPJS_BEHAVIOR_PATH, FPJS_AGENT_DOWNLOAD_PATH, FPJS_GET_RESULT_PATH)

If want to use Terraform instead of CloudFormation to install the integration, see Install CloudFront integration using Terraform.

🚧

Limitations

This integration is exclusively supported for customers on the Enterprise Plan. Other customers are encouraged to use Custom subdomain setup or Cloudflare Proxy Integration.

Step 3: Install the CloudFormation application

The Lambda proxy function and associated resources are provided as a CloudFormation template.

Step 3.1: Create CloudFormation stack

1. Go to the CloudFormation installation wizard to open the deployment dialog.
2. Select the us-east-1 region in your AWS console before deploying the application. Due to AWS limitations, the Lambda proxy function, and therefore the entire CloudFormation stack, must be deployed to the us-east-1 region.
3. Keep predefined settings:
   1. Prepare template is Choose an existing template.
   2. Specify template is Amazon S3 URL.
   3. Amazon S3 URL is https://fingerprint-pro-cloudfront-integration.s3.amazonaws.com/v2/template.yml
4. Click Next.

Step 3.2: Specify stack details

Provide a stack name and fill in the required template parameters.

• Set FpjsAgentDownloadPath to the FPJS_AGENT_DOWNLOAD_PATH value defined in Step 2.
• Set FpjsGetResultPath to the FPJS_GET_RESULT_PATH value defined in Step 2.
• Set FpjsPreSharedSecret to the FPJS_PRE_SHARED_SECRET value you created in Step 1.

🚧

Notice: Upcoming changes to proxy integration authentication

• Currently, proxied identification requests without a valid proxy secret still work, but provide a less accurate result.
• In the future, proxied identification requests without a valid proxy secret will result in a proxy integration error and not receive identification results.

The goal of this change is to prevent a proxy integration misconfiguration from silently degrading your identification accuracy.

• You can go to Dashboard > Integrations & SDKs > AWS CloudFront to verify that you don’t have any Proxy secret errors in your usage chart.
• If your proxy secret is not configured correctly, follow Step 1 and then update the integration's secret in the AWS Secret Manager. Contact our support team if you have any questions.

In this step, you need to choose between using an existing CloudFront distribution or creating a new one.

A) Use an existing CloudFront distribution (recommended)

If your website is already running on CloudFront, you can use the same distribution and domain for the proxy integration.

This is the recommended setup. Your website and the proxy function will be same-site, served from the same IP address or IP address range. Having the same or similar IP improves cookie lifetimes in Safari — they will be stored in the browser for up to one year instead of 7 days.

• Set DistributionId to the identifier of your existing CloudFront distribution.

B) Create a new CloudFront distribution

If your website is not running on CloudFront, you can create a new CloudFront distribution and website subdomain just for the proxy integration.

This setup limits Safari cookie lifetime to 7 days. Because your website and the Lambda proxy function will likely have different IP ranges, Safari will apply the same cookie lifetime cap as for third-party CNAME cloaking. This is still an improvement over third-party cookies getting blocked entirely by Safari. But we recommend serving your website and the proxy integration using the same CloudFront distribution if possible (option A above).

• Leave DistributionId empty. The template will create and configure a new CloudFront distribution for you.
• If you want to attach an alternate domain name and custom SSL certificate to the new CloudFront distribution, fill in these parameters:
  • Set ACMCertificateARN to the ARN identifier of your SSL certificate in the AWS Certificate Manager.
  • Set DomainNames to a list of plus-separated domain names, for example: domain1.com or domain1.com+domain2.com. These will be attached to the created CloudFront distribution.
    The deployment will fail if any of the domain names is not covered by the certificate or if it is already used as an alternate name for another CloudFront distribution.

Once you have made your choice, click Next.

Note: This application creates the custom IAM roles that allow us to modify CloudFront distribution to keep the Lambda@Edge function up to date. You can review these policies in the CloudFormation template.

Step 3.3: Configure stack options

Fingerprint Pro integration has no specific stack options to configure at this step. You can change them depending on your internal requirements.

Click Next.

Step 3.4: Review and create

1. Review the Parameters section.
2. In the Capabilities and transforms section:
   1. Check I acknowledge that AWS CloudFormation might create IAM resources.
   2. Check I acknowledge that AWS CloudFormation might create IAM resources with customized names.
   3. Check I acknowledge that AWS CloudFormation might require the following capability: CAPABILITY_AUTO_EXPAND
3. Click Submit.

After deployment, you will be redirected to the CloudFormation Stacks page where you can see a list of resources created by the application.

• The Status indicates the current state of deployment. It starts from REVIEW_IN_PROGRESS to CREATE_IN_PROGRESS, and finally CREATE_COMPLETE.
• If you see a different status (CREATE_FAILED, ROLLBACK_IN_PROGRESS, ROLLBACK_COMPLETE, etc), please contact our support team.

Once the application is fully deployed (stack has the status CREATE_COMPLETE), you can switch to the Outputs tab, and find the names of created entities.

• The Export name of LambdaFunctionName is a unique name of the created Lambda proxy function.
• The Export name of FingerprintProMgmtLambda is a unique name of the created Management function responsible for delivering updates to the main Lambda proxy function.
• The Value of CloudFrontDistributionId is an internal ID of the CloudFront distribution created by the CloudFormation template or your existing CloudFront distribution that you specified in Step 3.2.A.
• The Export name of FingerprintIntegrationSettingsSecret is the name of the AWS Secret for the Lambda proxy function. You can save this value somewhere. You might need it in Step 4.1.
• The Export name of CachePolicyName is a unique name of the CloudFront cache policy, which will be applied in a cache behavior for Fingerprint requests. You can save this value somewhere. You might need it in Step 4.2.
• The Value of MgmtLambdaFunctionUrl is a public URL of the management Lambda function. You can save this value somewhere. You will need it later to enable automatic updates for your integration in Step 6.

🚧

Do not disrupt the Management function

The Management Lambda function (FingerprintProMgmtLambda) deployed alongside the main proxy function is responsible for updating the integration. It makes sure visitor identification on your website keeps up with new browser releases and fingerprinting evasion techniques. An outdated integration can lead to lower accuracy or break visitor identification completely. Don't disable or delete the management function.

Step 4: Configure the CloudFront distribution

• If you are using an existing CloudFront distribution already serving your website (you have specified DistributionId in Step 3.2.A), start from Step 4.1 to configure your distribution for the proxy integration.
• If you decided to create a new CloudFront distribution (you have left DistributionId empty in Step 3.2.B), the CloudFormation template has deployed a new CloudFront distribution already pre-configured to serve the proxy integration.
  1. Attach an alternate domain name and CNAME if you haven't specified it in Step 3.2.B.
  2. Continue to Step 5.

Step 4.1: Create a new origin

1. Go to your CloudFront distribution, switch to the Origins tab, and click Create origin.
2. Fill in the required fields:
   1. Set Origin domain to fpcdn.io.
   2. Set Protocol to HTTPS only.
   3. Set Minimum origin SSL protocol to TLSv1.2.
   4. Set Name to fpcdn.io.
   5. Add a custom header:
      • Set Header name to FPJS_SECRET_NAME
      • Set Value to the Export name of FingerprintIntegrationSettingsSecret created in Step 3.4.
   6. Finally, click Create origin.

Step 4.2: Create a cache behavior

In this step, you will create a cache behavior to proxy requests to the Fingerprint API.

1. Go to your CloudFront distribution.
2. Switch to the Behaviors tab and click Create behavior.
3. Fill in the required fields:
   1. Set Path pattern to a value that matches all routes under FPJS_BEHAVIOR_PATH. For example, if FPJS_BEHAVIOR_PATH=random-path fill in random-path/*.
   2. Set Origin and origin groups to fpcdn.io.
   3. Set the Viewer protocol policy to Redirect HTTP to HTTPS.
   4. Set the Allowed HTTP methods to GET, HEAD, OPTIONS, PUT, POST, PATCH, DELETE.
   5. Set Cache key and origin requests to Cache policy and origin request policy (recommended).
   6. Set Cache policy to a Custom policy named FingerprintProCDNCachePolicy-{id}. You can find the name of your cache policy in CloudFormation > Stacks > _ > _Outputs as the Export name of CachePolicyName.
   7. Set Origin request policy to AllViewer.
   8. Click Create behavior.

🚧

Do not change the provided Cache Policy

It is intentionally configured with the minimum TTL of 0. Misconfiguring the policy could disrupt visitor identification and increase false positives (assigning the same visitor ID to different browsers).

Step 4.3: Attach the Lambda function to the cache behavior

1. Go to CloudFormation > Stacks and open your newly created stack (named Fingerprint-Pro-Cloudfront-Integration-v2 by default).
2. Switch to the Resources tab, find the resource with the Logical ID of FingerprintProCloudFrontLambda and click the link in the corresponding Physical ID column.

3. Scroll down and switch to the Configuration tab.
4. On the left, click Triggers, then click Add trigger.
5. Select CloudFront as the source and click Deploy to Lambda@Edge.

6. Select Configure new CloudFront trigger.
   1. Select your distribution.
   2. Select the cache behavior you created in the previous step.
   3. Set CloudFront event to Origin Request.
   4. Check Include body.
   5. Check Confirm deploy to Lambda@Edge.
   6. Click Deploy.

It may take several minutes to add the trigger to the CloudFront distribution. To monitor the progress, go to your CloudFront distribution, switch to the General tab, and check the Last modified time.

Step 5: Configure the Fingerprint JavaScript agent on your client

Use the path variables created in Step 2 to construct the agent-download and result-endpoint URLs.

If your website and the proxy integration are behind the same CloudFront distribution (you chose Step 3.2.A), the JavaScript Agent configuration will use randomized paths inside your domain, for example:

import * as FingerprintJS from '@fingerprintjs/fingerprintjs-pro'

// Initialize the agent at application startup.
const fpPromise = FingerprintJS.load({
  apiKey: 'PUBLIC_API_KEY',
  scriptUrlPattern: [
    'https://yourwebsite.com/FPJS_BEHAVIOR_PATH/FPJS_AGENT_DOWNLOAD_PATH?apiKey=<apiKey>&version=<version>&loaderVersion=<loaderVersion>',
    FingerprintJS.defaultScriptUrlPattern, // Fallback to default CDN in case of error
  ],
  endpoint: [
    'https://yourwebsite.com/FPJS_BEHAVIOR_PATH/FPJS_GET_RESULT_PATH?region=us',
    FingerprintJS.defaultEndpoint // Fallback to default endpoint in case of error
  ],
});

const url = 'https://yourwebsite.com/FPJS_BEHAVIOR_PATH/FPJS_AGENT_DOWNLOAD_PATH?apiKey=<PUBLIC_API_KEY>';
const fpPromise = import(url)
  .then(FingerprintJS => FingerprintJS.load({
    endpoint: [
      'https://yourwebsite.com/FPJS_BEHAVIOR_PATH/FPJS_GET_RESULT_PATH?region=us',
      FingerprintJS.defaultEndpoint // Fallback to default endpoint in case of error
    ]
  }));

If you set up a separate CloudFront distribution on your subdomain according to Step 3.2.B, the JavaScript Agent configuration will use that subdomain to interact with Fingerprint, for example:

import * as FingerprintJS from '@fingerprintjs/fingerprintjs-pro'

// Initialize the agent at application startup.
const fpPromise = FingerprintJS.load({
  apiKey: 'PUBLIC_API_KEY',
  scriptUrlPattern: [
    'https://metrics.yourwebsite.com/FPJS_BEHAVIOR_PATH/FPJS_AGENT_DOWNLOAD_PATH?apiKey=<apiKey>&version=<version>&loaderVersion=<loaderVersion>',
    FingerprintJS.defaultScriptUrlPattern, // Fallback to default CDN in case of error
  ],
  endpoint: [
    'https://metrics.yourwebsite.com/FPJS_BEHAVIOR_PATH/FPJS_GET_RESULT_PATH?region=us',
    FingerprintJS.defaultEndpoint // Fallback to default endpoint in case of error
  ],
});

const url = 'https://metrics.yourwebsite.com/FPJS_BEHAVIOR_PATH/FPJS_AGENT_DOWNLOAD_PATH?apiKey=<PUBLIC_API_KEY>';
const fpPromise = import(url)
  .then(FingerprintJS => FingerprintJS.load({
    endpoint: [
      'https://metrics.yourwebsite.com/FPJS_BEHAVIOR_PATH/FPJS_GET_RESULT_PATH?region=us',
      FingerprintJS.defaultEndpoint // Fallback to default endpoint in case of error
    ]
  }));

📘

Parameter URL nuances

• Note that the import url for the CDN installation method and scriptUrlPattern used by NPM packages are similar but different and cannot be used interchangeably.
• Pay attention to differences in query parameters:
  • Pass region to the endpoint parameters in the following format: ?region=eu. The value needs to reflect the region of you application.
  • Leave the scriptUrlParam parameter as displayed here: ?apiKey=<apiKey>&version=<version>&loaderVersion=<loaderVersion>. The apiKey version and loaderVersion parameters will be replaced by the values in the NPM package automatically. Do not alter them manually.

If everything is configured correctly, you should receive data through your CloudFront distribution successfully.

Step 6: Enable automatic updates in the Fingerprint Dashboard

Keeping the integration up to date is crucial for maintaining maximum identification accuracy. To enable automatic updates, provide the following Management function settings from AWS to the Fingerprint dashboard:

• The public URL of the Management function.
• An authentication token for the Management function.

When a new version of the proxy integration is available, Fingerprint will trigger an update by sending a request to the Management function URL, authenticated with the provided token. The token has only the permissions necessary for this purpose. You can verify the granted permissions in the Management function's Execution role (Stack > Resources > FpMgmtLambdaFunctionExecutionRole).

🚧

Note: Only users with the Owner or Admin role assigned can enable automatic updates for the integration in the Dashboard.

Step 6.1: Find the Management function details in AWS

1. Go to CloudFormation > Stacks and open your newly created stack (named Fingerprint-Pro-Cloudfront-Integration-v2 by default).

2. Switch to the Outputs tab. The Value of MgmtLambdaFunctionUrl is a public URL of your Management Lambda function. Save it somewhere.



3. Switch to the Resources tab. Click the Physical ID of the MgmtSettingsSecret.



4. Inside the secret page, click Retrieve secret value and copy the token value. This is the authentication token for the Management Lambda function. Save it somewhere.

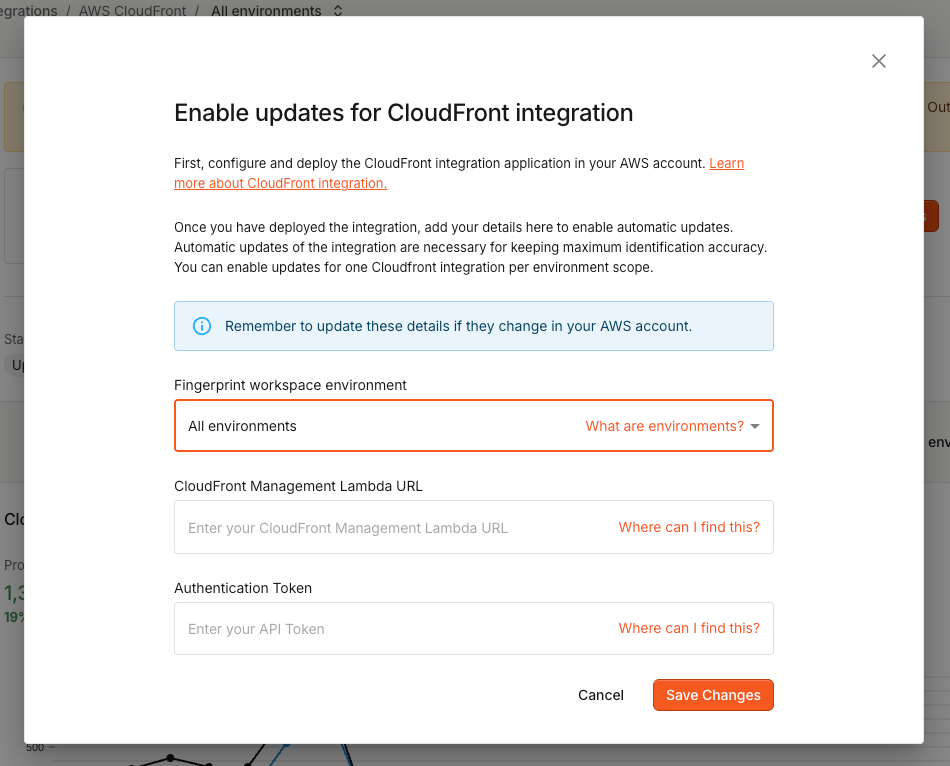

Step 6.2: Provide the Management function details to the Fingerprint Dashboard

1. Go to Dashboard > App Settings > Integrations > AWS CloudFront
2. Click Enable updates.
3. Fill in the values of CloudFront Management Lambda URL and Authentication Token that you retrieved in Step 6.1.
4. Click Save Changes.

The integration page will show Status: Updates enabled and Fingerprint will automatically keep your integration up to date.

Troubleshooting

If you run into problems, please provide our support team with the following information:

1. Open the integration CloudFormation stack.
2. Go to the Events tab, and copy the contents of the Status reason column for any failed statuses.

What's next

To learn more about calculating AWS costs and monitoring your CloudFront integration, go back to the general CloudFront Proxy Integration guide.
